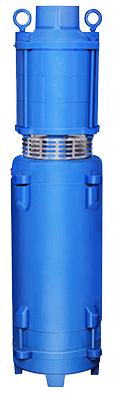

Submersible Bore well pump is suitable for open wells. Made with world class technology and crafted with advanced design.
Salient Features
- Flawless and maintenance free performance even at very low voltage - 180V In Single Phases and 250V In Three Phases.
- Saves electricity by 20% - 30% as compared to conventionally designed pumps.
- Less maintenance due to safe designs & high precision work.
- Negligible Chances of motor burning due to Low Current density, efficiency & safely designed motor.
- AISI 410 S.S. Grade induction Casting Pump Impellers.
- AISI 304 S.S. Grade Investment casting non-magnetic pump bowls.
- Pure AISI 304/431 S.S. grade motor shaft.
- Pure AISI 202 S.S. Grade stator shell.
- 100% pure EC Grade copper employed to make winding wire, dual coated with insulation Class-B
- Thrust assembly S.S.-410 and Carbon with AISI 304 S.S. Grade tilting pad.
- ‘SAND PROOF’ design of mechanical seal rings and Sand Guards protection.
- Usage: Domestic & Gardening, Industrial & Agricultural.
| PUMP TYPE | H.P. RANGE | HEAD RANGE (Mtrs) | DISCHRGE (LPM) |
|---|---|---|---|
| VERTICLE MULTISTAGE | 3.0-15.0 | 24-115 | 200-1050 |
Motor Specification
| Motor Body | Cast Iron/S.S 202 |
| Stamping | Electrical Grade Silicon Steel |
| Rotor Shaft | S.S 410 Grade high Tensile |
| Motor Body | Cast Iron/S.S 202 |
| Seal | Nitrile Rubber oil seal |
| Winding | poly propylene double coated copper wire |
| Copper Rotor | Grinding |
| Balancing | |
| Burnishing |
Pump Specification
| Pump Bowl | Cast Iron |
| Impeller | S.S. 410 |
| Pump Sleeve | S.S. with Hard Chrome Plating |
